    AxiaVert Series

    The Bonfiglioli AxiaVert series is designed to allow great flexibility and the highest levels of performance, making it ideal for a wide range of applications. The AxiaVert series' modular design offers integrated functional safety, optional encoder evaluation (including digital encoders like Hiperface DSL and EnDat 2.2), open communication protocols for compliance with Industry 4.0 standards, and an intuitive GUI for commissioning and monitoring.

    Key features

    Specifications

    Degree of protection
    IP20 (EN 60529)
    Certifications
    CE

    Specifications

    • Main options
      • Wide range of frame sizes and electrical power sizes for different mains voltages
      • Different mounting variants and cooling options
      • Different field bus options such as EtherCAT, PROFINET, CANopen
      • Optional keypad module with USB-C compatible connector for PC connection
      • Optional Bluetooth module for connection to PC or smartphone
      • Optional first and second encoder module. Optional encoder support: TTL, Resolver, SinCos, Hiperface, Hiperface DSL, EnDat 2.1,EnDat 2.2, SSI
      • Available accessories include mains chokes, filters, brake resistors
      • Optional cable sets for connection to BMD and BMS motors

      FUNCTIONAL SAFETY VARIANTS
      • Integrated functional safety in accordance with SIL 3 (EN 61508) and PL e (EN 13849-1), with a choice of three different variants:
      • Basic variant: STO - Safe Torque Off, SBC - Safe Brake Control
      • Standard variant: STO - Safe Torque Off, SBC - Safe Brake Control, SS1 - Safe Stop 1 (t)
      • Motion variant: STO - Safe Torque Off, SBC - Safe Brake Control, SS1 - Safe Stop 1 (t), SS1 - Safe Stop 1 (r+t+d) (also sensorless), SS2 - Safe Stop 2 (r+t+d), SOS - Safe Operating Stop, SLS - Safely Limited Speed (also sensorless), SLS-SL - Safely Limited Speed-Sliding Limit (also sensorless), SDI - Safe Direction, SSM - Safe Speed Monitor (also sensorless), SLP - Safely Limited Position, FSoE - Functional Safety over EtherCAT
      • All functional safety features are currently pending certification
    • Conformity
      CE conformity:
      • 2014/35/EU (Low voltage directive)
      • 2014/30/EU (Electromagnetic compatibility directive)
      • 2011/65/EU (RoHS directive)
      • EN61800-5-1:2007 (Adjustable speed electrical power
      drive systems - Safety requirements - Electrical, thermal
      and energy)
      • EN61800-3:2004 + A1:2012 (Adjustable speed
      electrical power drive systems - EMC requirements and
      specific test methods)
      • EN61800-9-2:2018 (Adjustable speed electrical power
      drive systems - Ecodesign for power drive systems,
      motor starters, power electronics and their driven
      applications)
    • Power supply & Power range
      AXV20: 0.25-3 kW / single-phase
      184 - 240 V (+10%) / 50 - 60 Hz (+-10 %)

      AXV20: 0.25-9.2 kW / three-phase
      184 - 240 V (+10%) / 50 - 60 Hz (+-10 %)

      AXV40: 0.25-15 kW / three phase
      380 (-15 %) - 480 V (+10 %) / 50-60 Hz (+-10 %)

      up to 150 % overload for 60 s
      up to 200 % overload for 3 s
    • Hardware features
      • Integrated functional safety (3 different functional safety variants to choose from)
      • DC 24 V input (two-pin connector for easy wiring)
      • DC 24 V output
      • Integrated brake chopper
      • Dedicated brake control output (DC 24 V / 3 A)
      • DC link connection
      • Standard HTL encoder interface
      • 2 optional encoder slots for absolute encoder, resolver or TTL
      • Motor temperature monitoring
      • Plug-in power terminals (up to 15kW)
      • Plug-in and programmable control terminals
      • 5 digital inputs
      • 1 digital input/output
      • 1 multifunction input
      • 1 analog output
      • 1 analog input
      • 1 relay output (changeover contact)
      • Jumper to switch easily between TN mains and IT mains (up to 15 kW)

      Power accessories:
      • Brake resistors
      • Line chokes
      • EMC filters


    • Software features
      • Positioning function via fieldbus (motion control compatible to CiA DS402)
      • Rotary table control
      • Master/slave function with electronic gear
      • Power failure management for controlled ramp down
      • Functions for lift, crane and winch applications
      • Spindle control
      • Motor supervision functions (i.e. I²t, software motor switch, encoder supervision)
      • Traverse function for winders
      • Programmable reference value channel
      • Programmable start and stop characteristics
      • Position, speed or torque control
      • Programmable S curve
      • 4 data sets
      • Auto startup and commissioning
      • Auto reset after failure
      • Auto start after power failure
      • PID controller
      • Jerk-free torque/speed changeover
      • Friction-free mechanical brake control
      • Pre-setup controllers (Current, Speed, Torque, Position) with wide adjustability
      • Adjustable current limit control
      • Smart current limits
      • Comprehensive monitoring and protection capabilities
      • High-speed control
      • 3 different brake management functions
      • Belt monitoring / Low current detection
      • Input and output phase monitoring
      • Adjustable voltage controller
      • Motor potentiometer
    • Mounting options
      • Cabinet mounting for all sizes
      • Optional feed-through mounting
      • Optional ColdPlate

    • Motor options
      Motor control (with or without encoder):

      • Asynchronous AC motors
      • Synchronous reluctance motors
      • Permanent-magnet synchronous motors

    Types & Powers

    • Types & powers
      Type Size Power kW*
      AXV20 / K25 1 0.25
      AXV20 / K37 1 0.37
      AXV20 / K55 1 0.55
      AXV20 / K75 1 0.75
      AXV20 / 1K1 1 1.1
      AXV20 / 1K5 2 1.5
      AXV20 / 2K2 2 2.2
      AXV20 / 3K0 2 3.0
      AXV20 / 4K0 3 4.0
      AXV20 / 5K5 3 5.5
      AXV20 / 7K5 4 7.5
      AXV20 / 9K2 4 9.2
      AXV40 / K25 1 0.25
      AXV40 / K37 1 0.37
      AXV40 / K55 1 0.55
      AXV40 / K75 1 0.75
      AXV40 / 1K1 1 1.1
      AXV40 / 1K5 1 1.5
      AXV40 / 1K9 2 1.85
      AXV40 / 2K2 2 2.2
      AXV40 / 3K0 2 3.0
      AXV40 / 4K0 2 4.0
      AXV40 / 5K5 3 5.5
      AXV40 / 7K5 3 7.5
      AXV40 / 9K2 3 9.2
      AXV40 / 11K 4 11.0
      AXV40 / 15K 4 15.0
    Related

    BMD - Servomotors

    BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

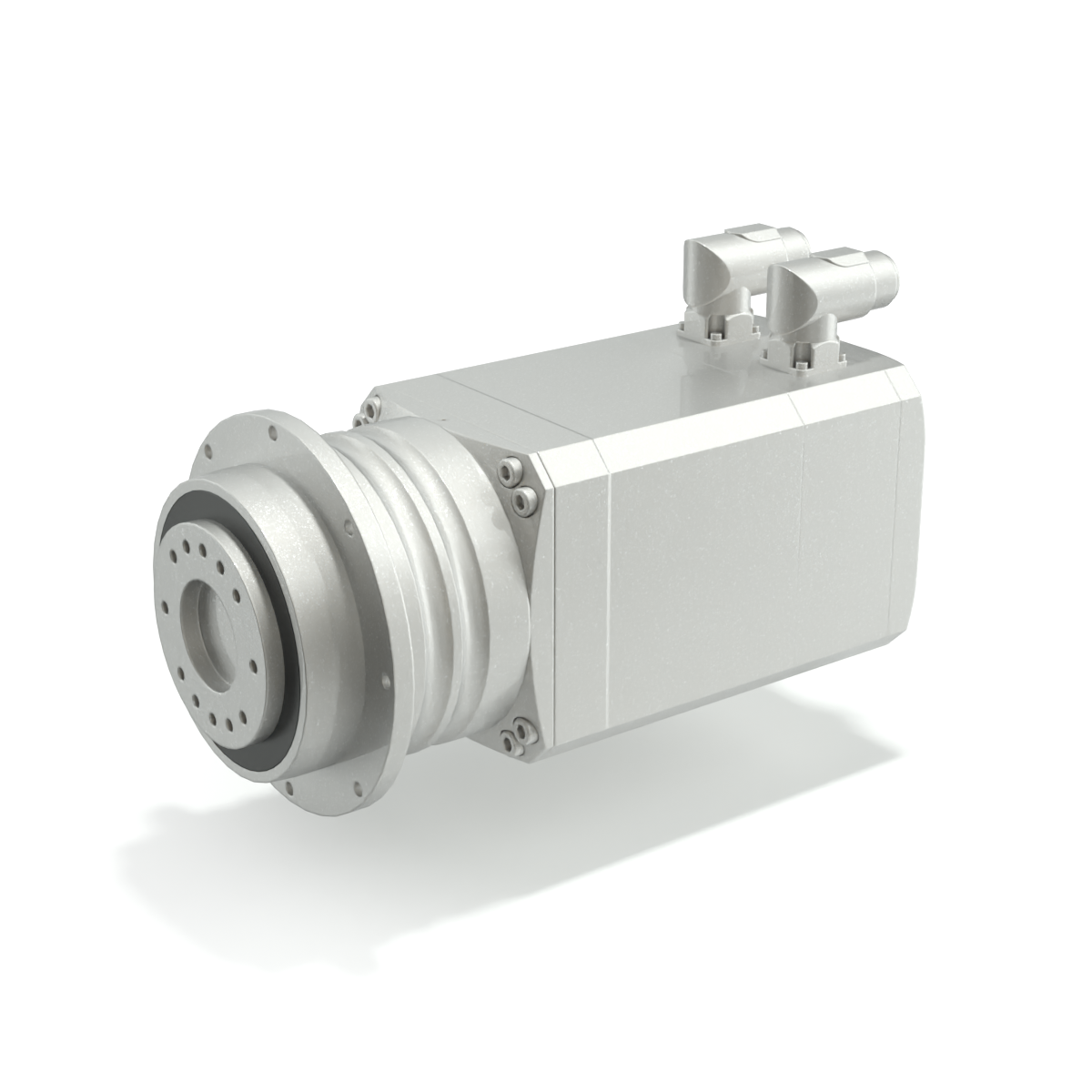

    BMS

    Using an integrated solution, rather than a traditional gearhead/motor combination, the BMS series offers revolutionary space-saving machine design, a wider range of options and a superior performance due to the synergies between permanent magnets, synchronous motors and precision planetary gearbox technologies. With very reliable tested features, the customer has the flexibility to select three types of performance with an excellent combination variants low overspeed, medium overspeed and high overspeed. All these variants have been designed to optimize the output needed with the benefits of supreme compactness, highest torque / input speed and optimization of drive size. These excellent benefits are achieved using 5 gearbox sizes and 14 motors in combination with 3 types of Yarn Winding machines. Excellence and reliability allow continuous duty to run your application safely.

    BSR Series

    The synchronous reluctance motor guarantees a sustainable ecological solution which decreases the total environmental impact thanks to the absence of magnets and increased efficiency. Reduced operating costs allow a fast return. This product benefits from the proven simplicity and reliability of induction motors and the higher efficiency of synchronous motors.

    TQ Series

    The TQ series scores in each performance category: high torque density, high overload capacity, exceptional precision and low vibration. TQ is particularly suited for the highly demanding requirements of servo systems, such as fast dynamics and frequent reverse motion, precise position, motion control and high numbers of starts and stops.

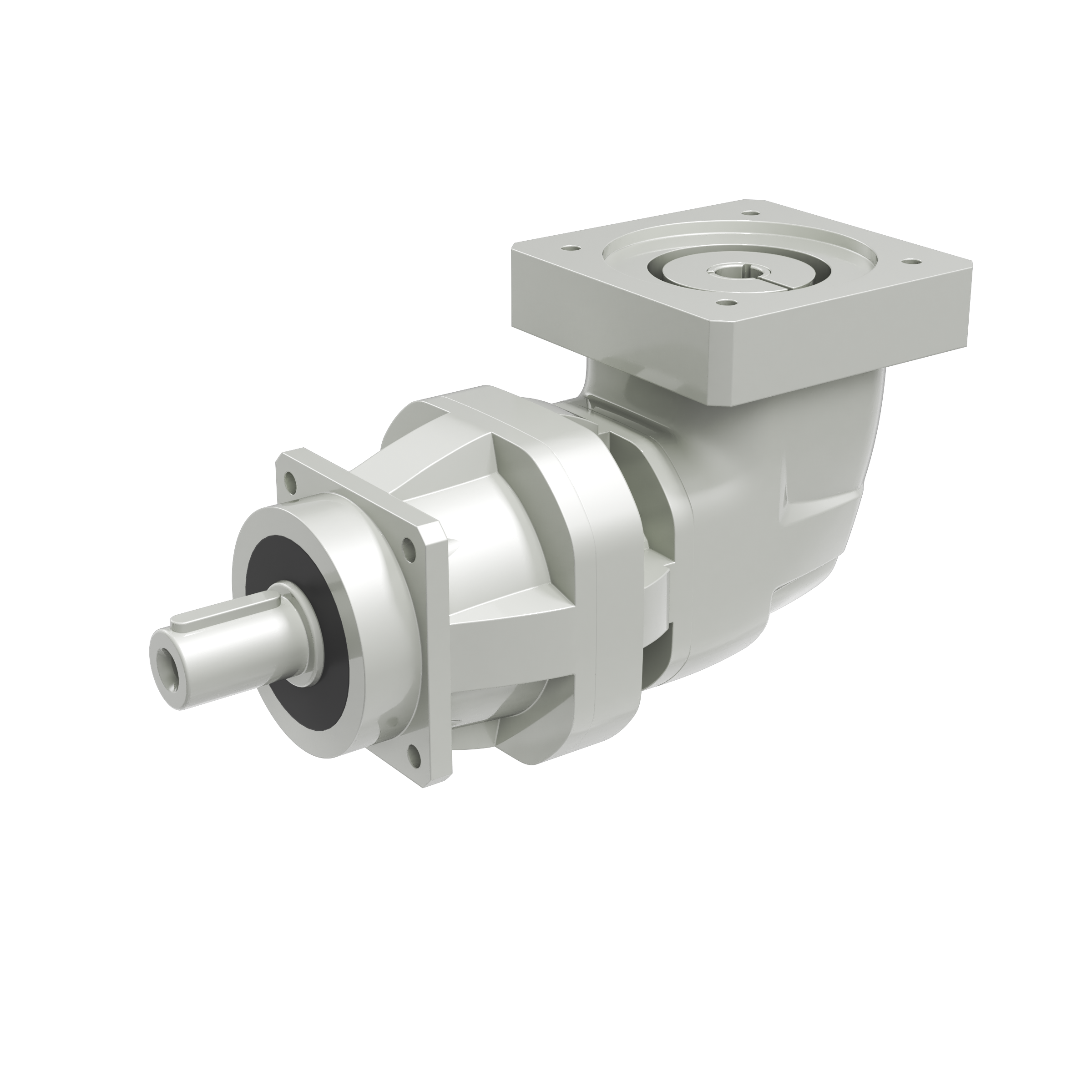

    TQK Series

    The TQK right-angle series represents the best solutions for issues of space saving, while maintaining the same top performance levels of the TQ in-line series. This series is particularly suited for the highly demanding requirements of servo systems, such as fast dynamic response, frequent reverse motion, precise position, motion control and high number of starts and stops

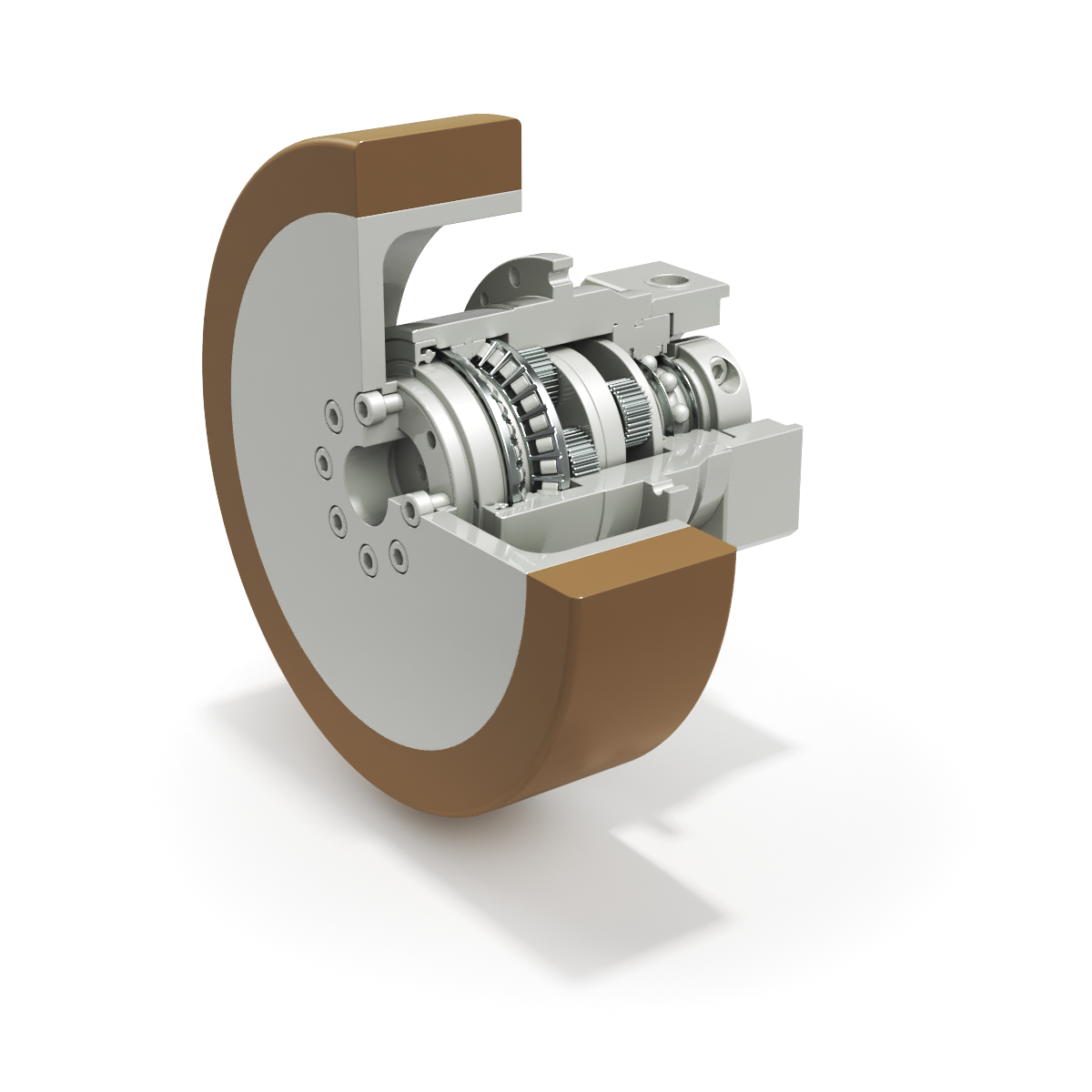

    TQW

    The TQW series is part of the BlueRoll product platform for Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs). It is built to support high loads and to be mounted directly on the chassis, in limited installation spaces. The TQW is efficient and durable. A heavy-duty wheel is available for all its three sizes. Moreover, you can select the best configuration for your AGVs and AMRs from the BlueRoll platform range: Basic, Advanced or Compact.

    LC

    LC precision planetary gearboxes represent a flexible solution and valuable alternative with optimal performance and reliability levels. The output design in line with market standards ensures great compatibility for easy retrofits and a high level of freedom in projects development.

    MP

    The MP series is characterized by a wide range of torque, multiple sizes, great modularity due to multiple design configurations, wide ratios range, two backlash classes and different optimized lubrications ensuring high reliability and the most fitting response to different applications requirements.

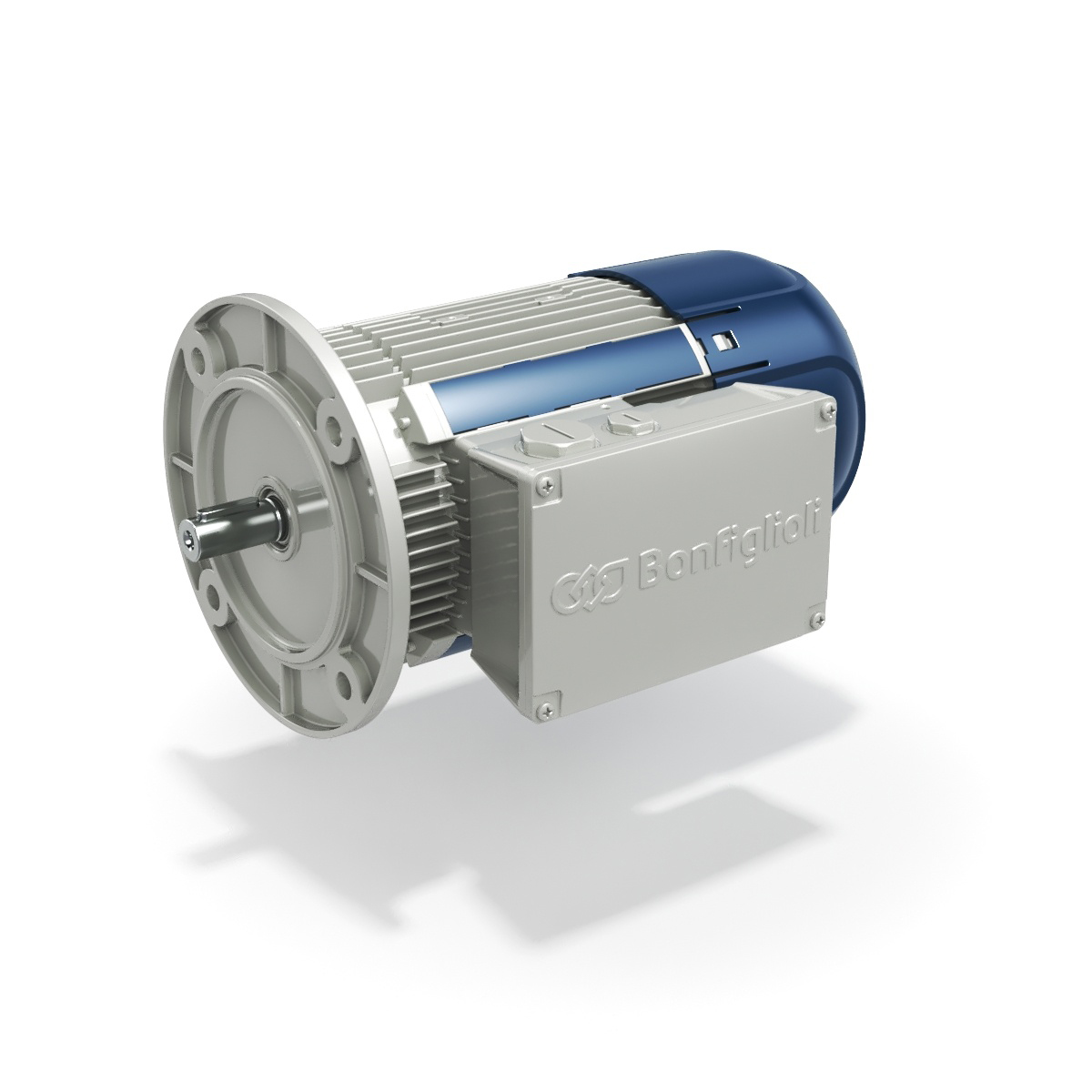

    EVOX BXN Series

    BXN, MXN and MNN are asynchronous low voltage e-motors, developed to be modular, efficient and reliable. The new EVOX e-motor family is highly versatile and easy to adapt to a wide variety of needs: BXN is the answer to increasingly complex tech market demand while complying with the strictest energy efficiency standards. Posing no voltage or positioning limits and boasting easy add-on modular accessories and a great variety of versions and options, the EVOX BXN Series is the perfect partner for your business. The motor is available both stand alone and in a compact coupling with Bonfiglioli Gear Units.

    F Series

    The F Series is perfectly suited to any crawler and milling machine. Thanks to compact, rugged design, high torque and load capabilities, these solutions are the best possible option for thes machines. All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems. Different disengagement systems are available on demand for all the sizes.

    VF-W ATEX Series

    Some industrial environments are characterized by the presence of explosive atmospheres and thus require additional safety measures. Industrial equipment operating in such conditions must be specifically designed to prevent ignition of the flammable substances present in the atmosphere. To meet our customers’ needs, Bonfiglioli has developed an entire line of gearboxes that can be safely used in explosive environments in accordance with ATEX Directive 201/34/EU. If the ATEX version is selected, gearboxes of VF/W, ACF, HD and 300M Series will be manufactured for the utilization in zones 2G/2D and 3G/3D.

    A Series

    The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the A Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in Bonfiglioli's light- and medium-duty portfolio. The A Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the A Series.

    C Series

    The C Series is designed for the requirements of standard tasks in the industrial environment. These series achieve first-rate reliability, efficiency, robustness, and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-stage versions, allows the customer to adapt the C Series to every application and to find the perfect match for output speed requirements. The C Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the C Series.

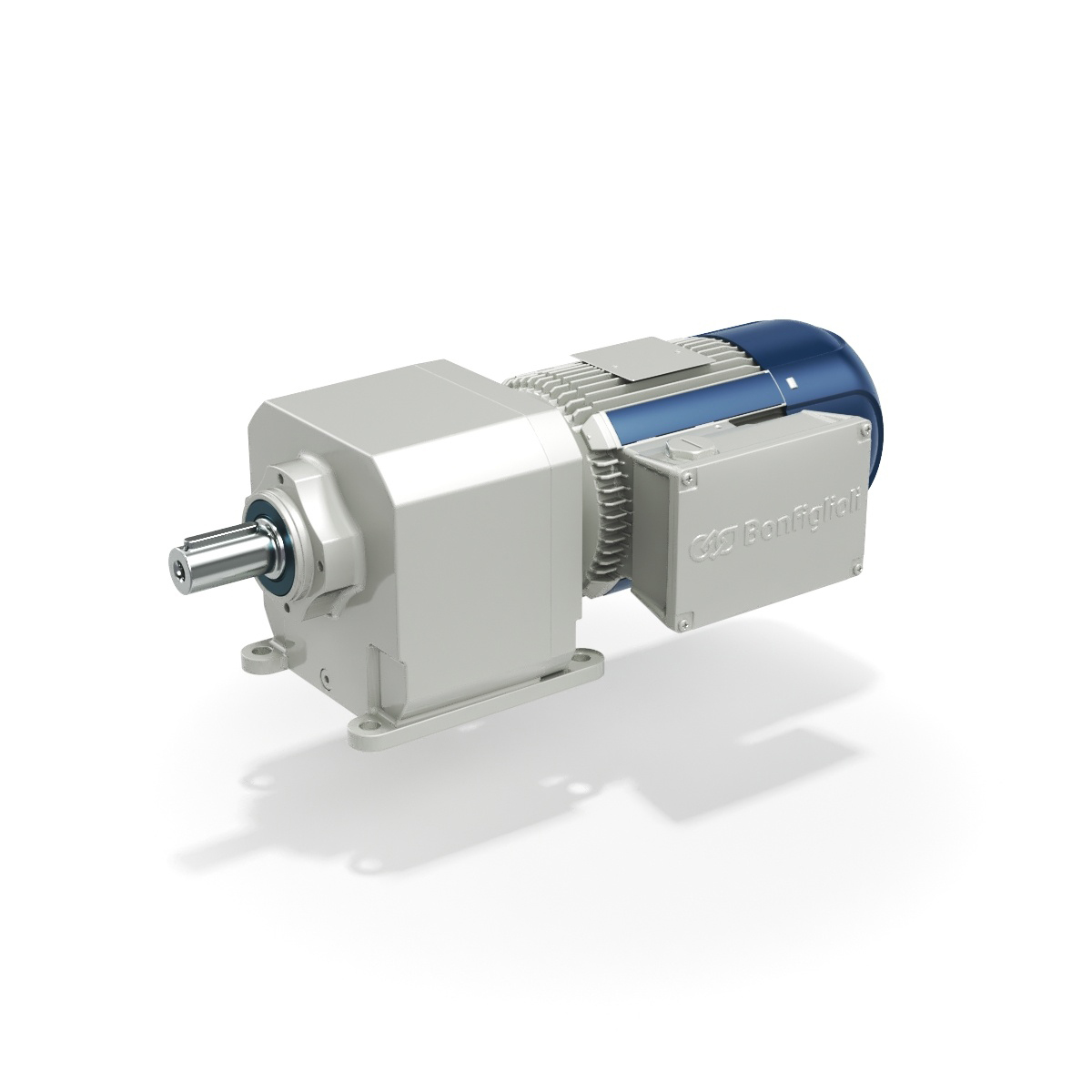

    EVOX CP Series

    EVOX CP is a helical in-line gearbox with a smooth surface that gives high performance at a great value. With a market standard-aligned footprint, EVOX CP can be fitted to any machine without changing the gear unit interface. Thanks to Bonfiglioli's wide range of versions, options and motor technologies, EVOX CP can be adapted to any machine need. The EVOX CP Series can be combined with a wide range of electric motors such as asynchronous motors (both IEC and compact) and reluctance motors (BSR).

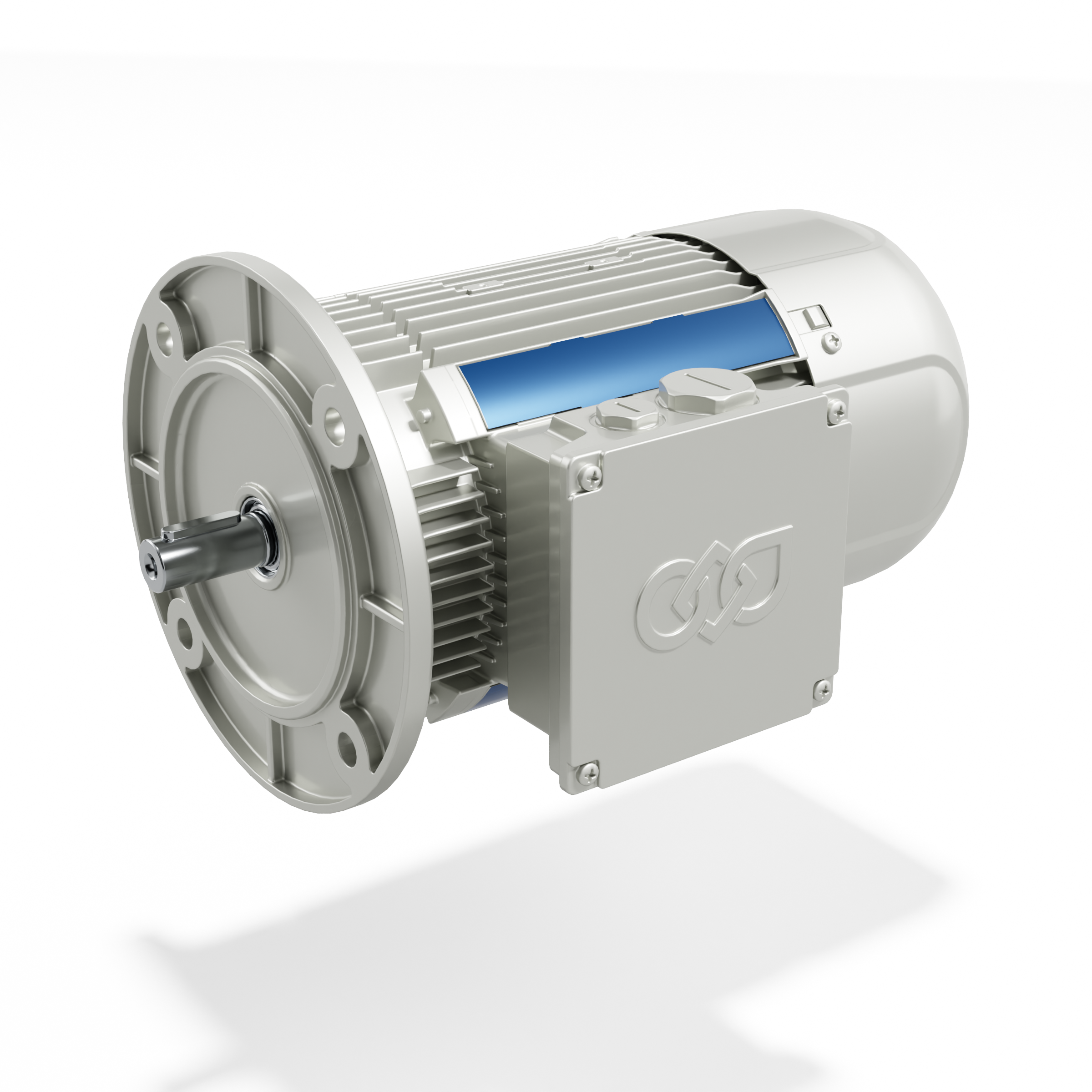

    BE Series
