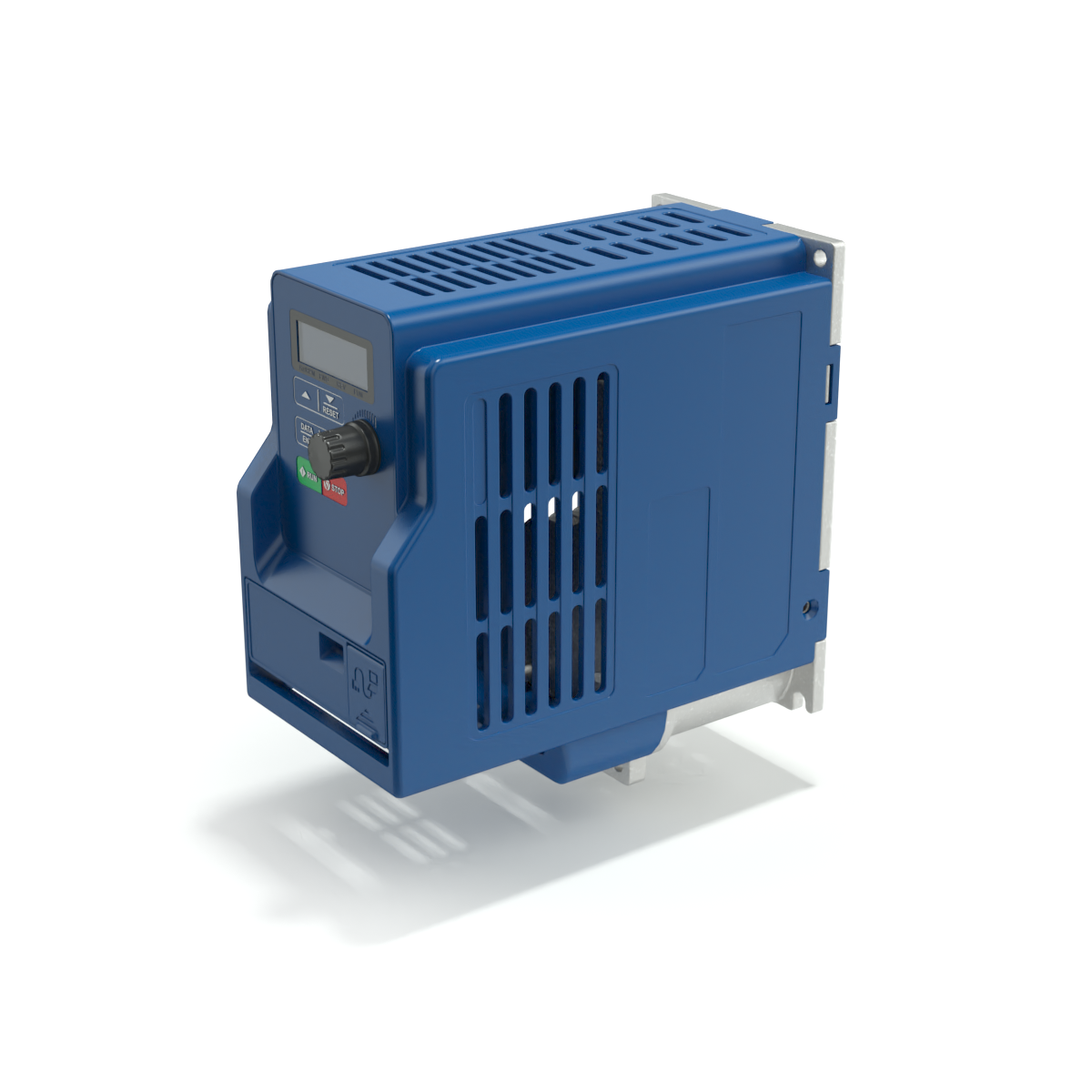

    S2U standard

    The S2U, plug & play frequency inverter has been designed for entry level applications such as pumps, fans and conveyors. This product offers a cost-effective, easy-to-use solution.

    Key features

    Specifications

    Degree of protection
    IP20 (EN 60529)
    Rated speed
    0 ... 650 Hz
    Conformity
    CE
    Motors
    Asynchronous AC motors

    Specifications

    • Main options
      • Optional interface for communication to PC
      • ASK-USB: Communication to PC via optional communication cable
    • Power supply & Power range
      S2U230S--..(F) IP66:
      0.2 - 2.2 kW / single-phase 200 - 240V (+10%-15%) / 50 or 60 Hz
    • Hardware features
      • 5-digit display
      • 1 analog input (V or I selectable)
      • 5 digital inputs (programmable multifunction)
      • 1 analog output (voltage linear)
      • 1 relay output (programmable multifunction)
      • 1 RJ45 terminal for communication with PC or modbus network
    • Mounting options
      • Cabinet mounting for all sizes
      • Optional DIN rail mounting frame size 1 & 2

    Types & Powers

    • Type | Power (kW)
      S2U230S-02 (1) 0.20
      S2U230S-03 (1) 0.40
      S2U230S-07 (1) 0.75
      S2U230S-11 (2) 1.50
      S2U230S-13 (2) 2.20
